Infinity Drain Assembly

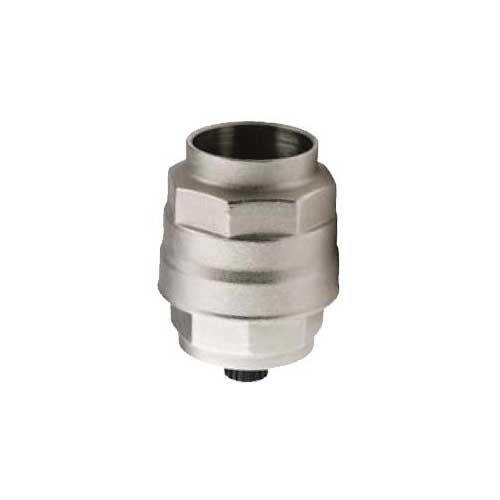

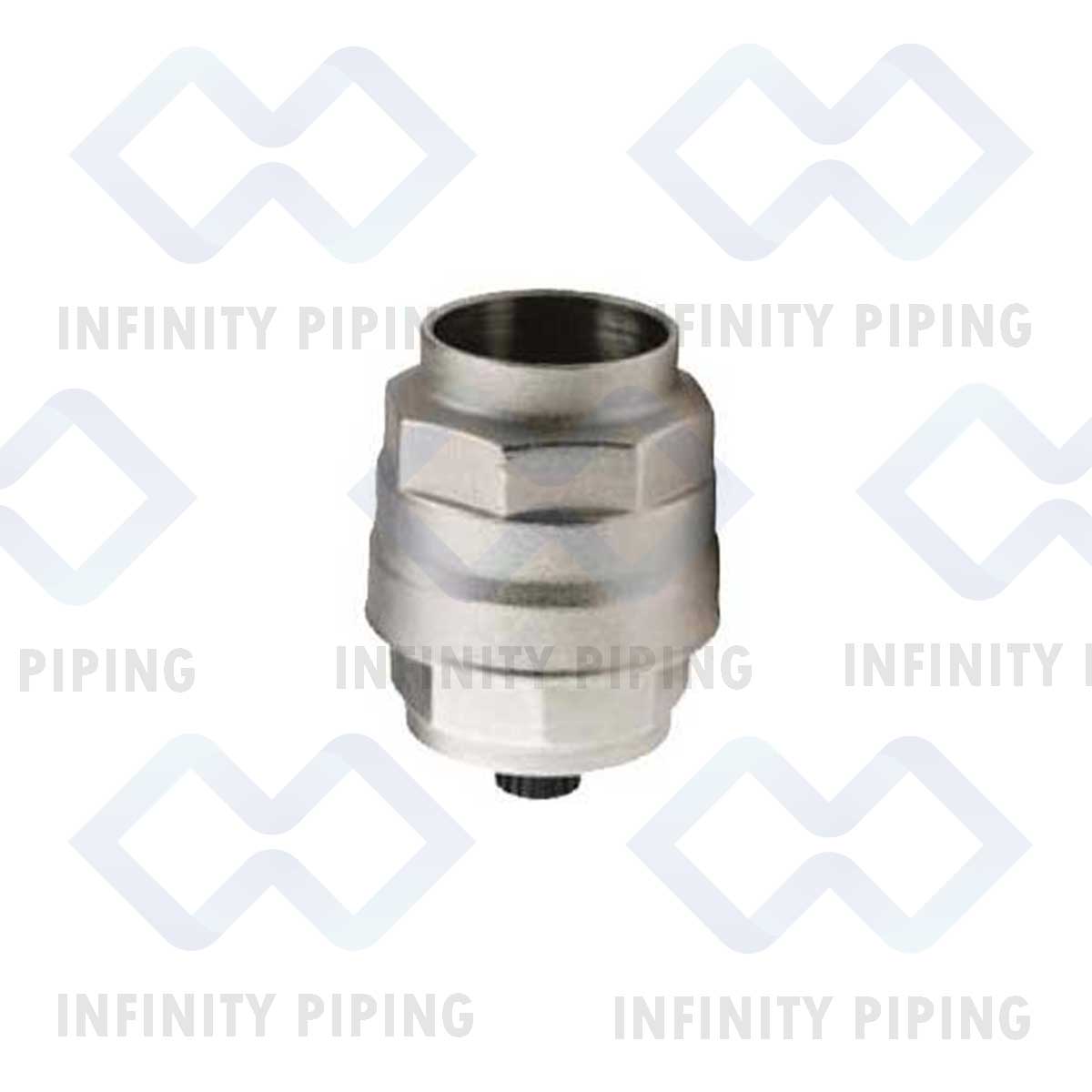

Infinity Drain Assembly (Drain Cap 90260)

The Essential Trap for Moisture Removal

Safeguard your Infinity Aluminum Piping System from internal corrosion and fluid buildup with the Infinity Drain Assembly (90260). Often referred to as a “condensate cap” or “drain plug,” this component is critical for the proper maintenance of any compressed air network.

Designed to be installed at the lowest points of your piping drops or at the end of vertical legs, this assembly acts as a collection point for the moisture, oil, and particulates that naturally drop out of the air stream. By trapping these contaminants before they can recirculate, it ensures cleaner air for your tools and provides a convenient point for routine maintenance.

Key Features & Benefits

• Effective Contaminant Trap: Gravity naturally pulls condensate and debris to the bottom of vertical drops. The 90260 assembly captures this runoff, preventing it from being pushed downstream into sensitive pneumatic equipment.

• Easy Maintenance Access: The assembly features a removable plug or valve port, allowing maintenance personnel to quickly drain accumulated fluids without disassembling the pipe run. Regular draining takes only seconds but adds years to the life of your system.

• Versatile Connectivity: While it serves as a cap, the threaded port allows for the installation of automatic drain valves. This upgrades the unit from a manual drain point to a fully automated maintenance solution.

• Push-to-Connect Simplicity: Like all Infinity fittings, the top connection utilizes the secure push-lock technology. Simply push the pipe end into the cap for an instant, leak-free seal capable of holding high pressure.

• Durable Construction: Manufactured from robust, corrosion-resistant materials (Nickel-Plated Brass or Aluminum depending on size), ensuring it withstands the acidic nature of compressor condensate.

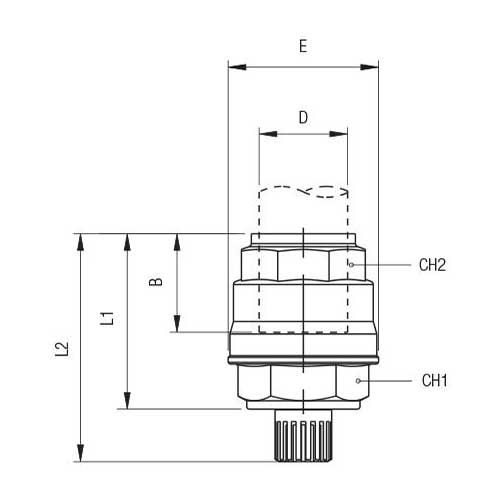

Technical Specifications

• Part Number: 90260 (Series)

• Connection Type: Push-to-Connect Input x Threaded Drain Outlet

• Outlet Thread: Standard Female NPT (typically 1/4″ or 1/2″)

• Pressure Rating: Up to 232 PSI (16 Bar)

• Temperature Range: -4°F to +176°F (-20°C to +80°C)

• Material: Nickel-Plated Brass

Ideal Applications

• Compressor Outlets: Installed on the bottom of the first vertical drop after the compressor to catch the bulk of the water.

• System Low Points: Placed at the lowest physical point of any ring main loop.

• Drop Legs: Used at the bottom of a drop leg (below the tee) to allow water to settle out past the air outlet.

Keep your air dry and your system clean. Install the Infinity Drain Assembly at every low point.
