Infinity Intermediate Cross

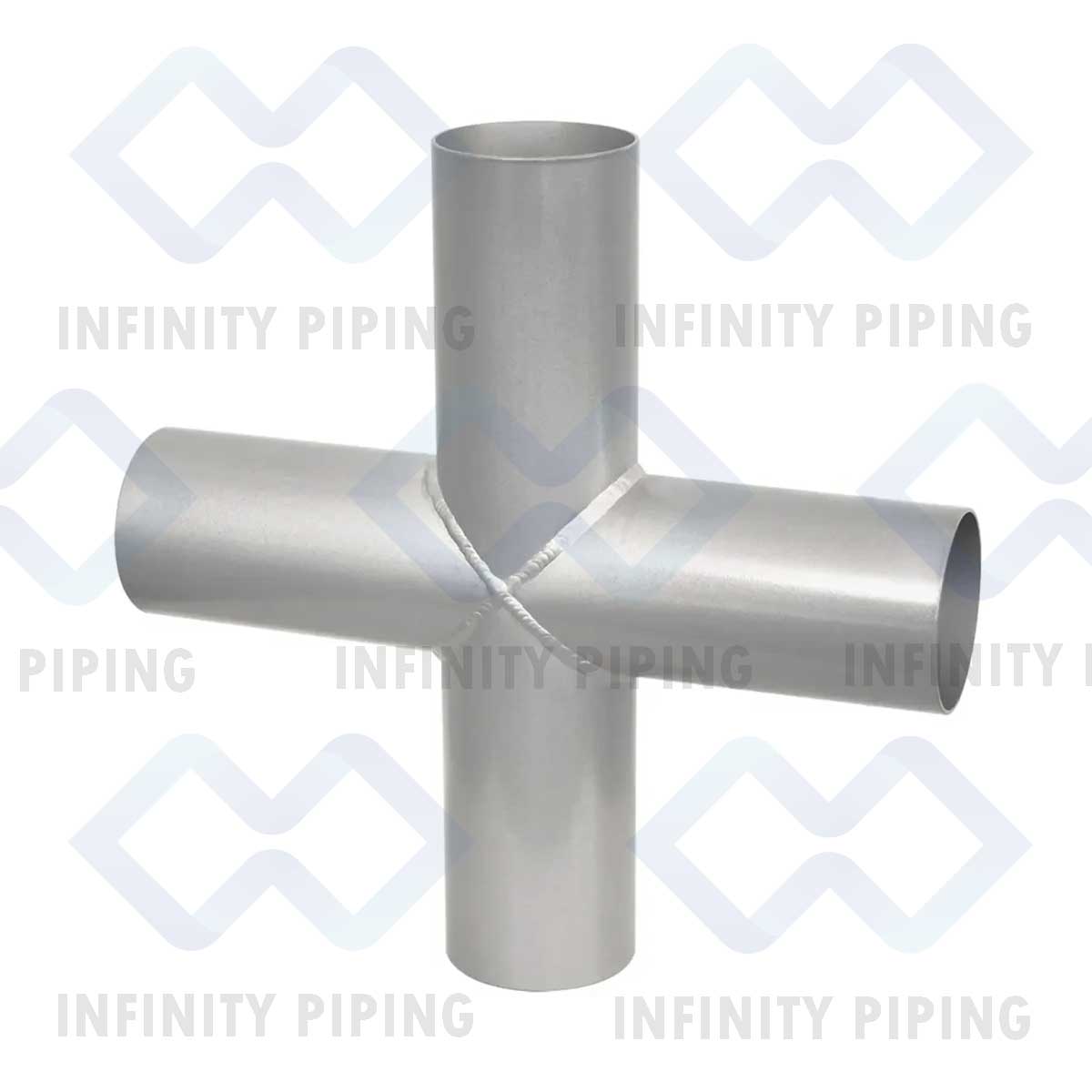

Infinity Intermediate Cross Fitting (Aluminum)

The High-Efficiency Solution for Multi-Directional Distribution

Maximize the reach of your industrial air network with the Infinity Intermediate Cross Fitting. Also known as a “4-Way Cross” or “Distribution Node,” this heavy-duty aluminum fitting allows you to split a single main header into three separate directions simultaneously.

Designed specifically for the larger diameters of the Infinity Aluminum Piping System (typically 80mm – 168mm), this cross is essential for creating central distribution hubs in large manufacturing plants. It allows for the creation of complex grid layouts or the installation of multiple lateral branches from a single point, ensuring equal pressure distribution across all lines.

Key Features & Benefits

• Centralized Distribution: Acts as a traffic circle for your compressed air, allowing a main supply line to feed three different zones or headers. This reduces the number of fittings required compared to using multiple tees back-to-back.
• Balanced Airflow:

The symmetrical design ensures that airflow is distributed evenly to all outlet ports. This minimizes turbulence and prevents the pressure drops that can occur when “daisy-chaining” multiple take-off points.

• Industrial Strength Grip: Engineered for large-bore piping, this fitting utilizes the Infinity heavy-duty clamp or flange-style retention system. This ensures a lock-tight seal that can withstand the significant dynamic forces and vibration of high-volume air movement.
• Lightweight Durability: Constructed from premium die-cast aluminum alloy. Despite its size, it is significantly lighter than a cast iron cross, making overhead installation safer and reducing the load on your ceiling structure.
• Modular Versatility: Need to reduce a size on one outlet? The ports are compatible with Infinity Reducing Bushings or Flange Adapters, allowing you to customize the output sizes for different areas of your plant.

Technical Specifications

• Configuration: 4-Way Cross (Equal Ports)
• Material: Die-Cast Aluminum Alloy (Non-Corrosive)
• Connection Type: Infinity Industrial Clamp/Collar Style
• Pressure Rating: Up to 232 PSI (16 Bar)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)
• Sizes Available: 80mm, 110mm, 168mm (Check specific availability)
• Application: Creating 4-way intersections in main distribution headers.

Ideal Applications

• Plant Centers: Installed at the very center of a facility to distribute air to North, South, East, and West headers simultaneously.
• Manifolds: Creating a compact header manifold to feed multiple large machines in a cluster.
• Grid Loops: Connecting intersecting ring mains in a large-scale grid layout.

Simplify your complex piping layouts. Use the Infinity Intermediate Cross Fitting for efficient, centralized air distribution.
