Infinity Flange Adapter

Infinity Flange Adapter

The Heavy-Duty Interface for Industrial Air Systems

Seamlessly integrate your Infinity Aluminum Piping System with large-scale industrial equipment using the Infinity Flange Adapter. As air demand grows, threaded connections become impractical. This adapter provides a robust, bolt-on solution for connecting your piping network to flanged air compressors, large refrigerated dryers, receiver tanks, and industrial butterfly valves.

Available for pipe sizes from 80mm (3″) up to 168mm (6″) and beyond, this adapter transitions from the Infinity push-to-connect or clamp-style system to a standard ANSI or DIN flange face, ensuring compatibility with virtually all heavy machinery.

Key Features & Benefits

• Universal Equipment Compatibility: Designed to match standard flange patterns (typically ANSI 150# or DIN PN16), allowing you to bolt directly to the outlet of high-horsepower compressors or the inlet of large storage tanks without complex fabrication.
• Zero-Leak Connection: On the pipe side, the adapter utilizes the Infinity secure locking mechanism (clamp or grab ring) for an airtight seal. On the face side, it provides a flat, machined surface perfect for compressing a gasket, eliminating the air leaks common with large threaded unions.
• High-Flow Efficiency: The adapter is engineered with a smooth internal bore that matches the pipe diameter. This “full-flow” design ensures there is no restriction or “choke point” at the critical connection between your compressor and the main loop.
• Simplified Maintenance: Flanged connections are the standard for maintainability. If a compressor or dryer needs to be swapped out, simply unbolt the flange rather than cutting pipe or wrestling with seized threads.
• Robust Aluminum Construction: Made from the same high-quality aluminum alloy as the tubing, preventing galvanic corrosion and keeping the overall weight of the piping assembly low compared to steel flanges.

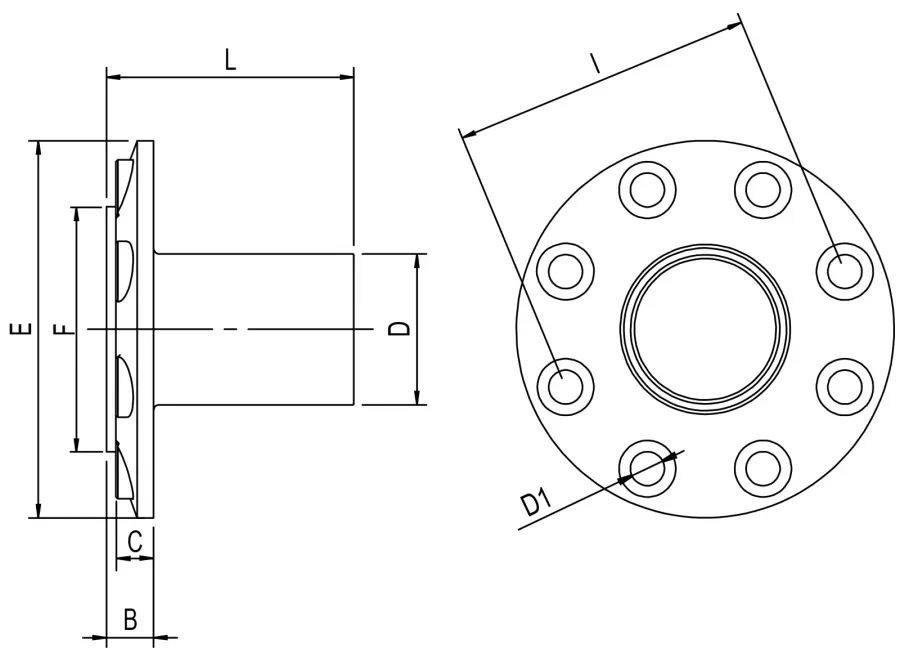

Technical Specifications

• Material: Die-Cast Aluminum Alloy
• Pipe Connection: Infinity System Standard (Clamp/Collar style for large diameters)
• Flange Standard: ANSI 150lb / DIN PN16 (Check specific part number for drilling pattern)
• Pressure Rating: Up to 232 PSI (16 Bar)
• Sizes Available: 80mm, 100mm/110mm, 150mm/168mm (and larger custom sizes)
• Application: Compressed Air, Vacuum, Inert Gas

Ideal Applications

• Compressor Discharge: Connecting the main outlet of 50HP+ screw compressors to the header.
• Tank Connections: Bolting piping directly to large vertical or horizontal air receiver tanks.
• System Isolation: Installing large wafer-style butterfly valves to section off plant areas.

Make the strong connection your industrial system requires with the Infinity Flange Adapter.
