Flanged Straight Male Adapter

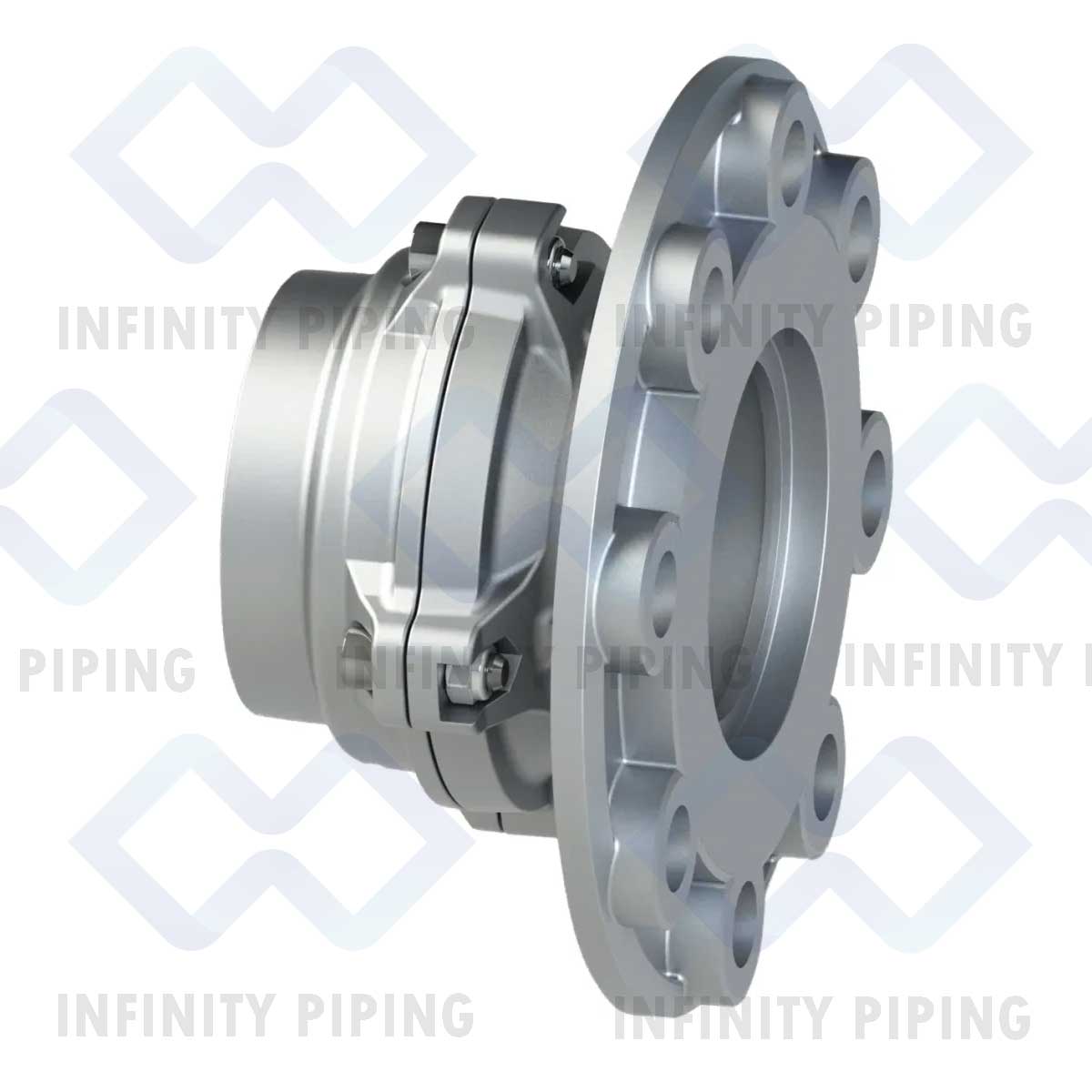

Infinity Flanged Straight Male Adapter (Industrial Series)

The Heavy-Duty Link Between Large Pipe and Threaded Equipment

Securely connect your large-diameter Infinity Aluminum Piping (sizes 80mm and larger) to threaded industrial components with the Infinity Flanged Straight Male Adapter. While smaller lines use simple push-to-connect fittings, high-volume mainlines require a more robust solution. This adapter utilizes the heavy-duty Infinity flange-clamp technology on the pipe side, transitioning to a standard Male NPT thread on the other.

This fitting is essential for integrating large threaded ancillaries—such as 3″ or 4″ ball valves, large particulate filters, or refrigerated dryer inlets—directly into your 80mm+ ring main without the need for heavy steel reducers or welding.

Key Features & Benefits

• Robust Flange-Clamp Connection: Unlike standard push-fittings, this adapter engages with the pipe using the Infinity industrial split-ring clamp system. This “flanged” style grip ensures the fitting cannot blow off even under the extreme dynamic forces of large-volume air movement.
• Direct-to-Thread Integration: Allows you to screw directly into large female-threaded equipment (like a 3″ NPT Filter housing) while maintaining the seamless aluminum pipe connection on the other side.
• Full-Flow Architecture: Designed with a large internal bore to match the flow characteristics of the pipe. This eliminates the “bottleneck” often created when using standard galvanized nipples to adapt sizes, ensuring your compressor power isn’t wasted at the connection.
• Lightweight Aluminum Construction: Made from high-quality die-cast aluminum alloy. It is significantly lighter than comparable steel or iron adapters, reducing the strain on pipe hangers and equipment ports.
• Corrosion-Free Performance: Eliminates the rust and contamination associated with using black iron or galvanized nipples at critical connection points.

Technical Specifications

• Material: Die-Cast Aluminum Alloy (Non-Corrosive)
• Pipe Connection: Infinity Industrial Clamp/Flange Style (80mm – 168mm)
• Thread Connection: Male NPT (National Pipe Taper)
• Available Sizes:
  • 80mm Pipe x 3″ Male NPT
  • 110mm Pipe x 4″ Male NPT (and other variations)
• Pressure Rating: Up to 232 PSI (16 Bar)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)

Ideal Applications

• Filter Banks: Connecting large mainline particulate or coalescing filters.
• System Isolation: Threading into large 3″ or 4″ brass/stainless ball valves.
• Equipment Inlets: Connecting to machinery that has large female threaded intake ports.

Ensure a secure, full-flow transition for your industrial mainlines with the Infinity Flanged Straight Male Adapter.
