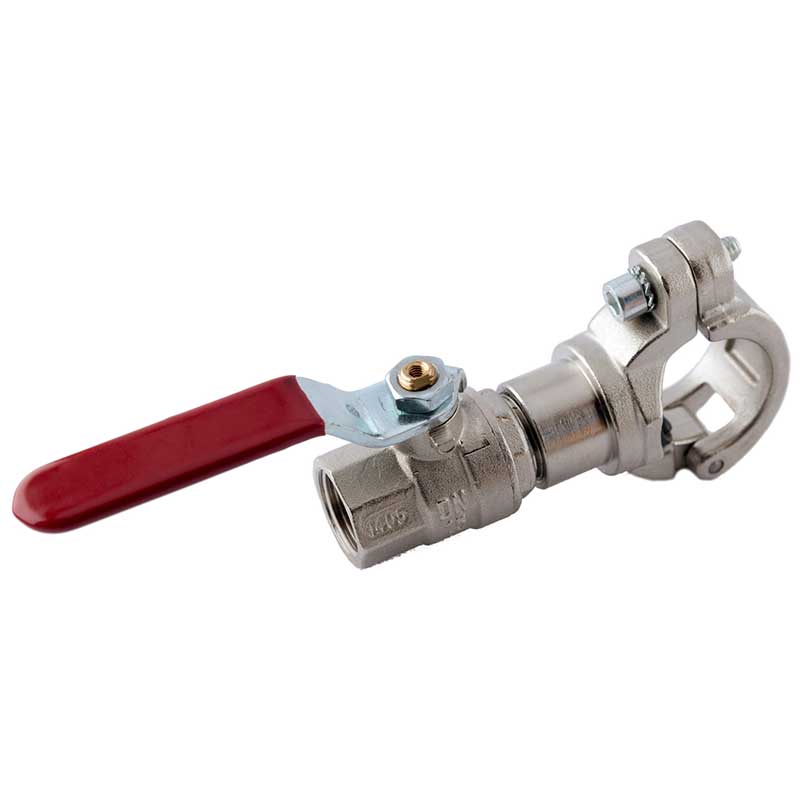

Compact Saddle Clamp 1/2 In NPT Valve
Compact Saddle Clamp 1/2 In NPT Valve

Compact Saddle Clamp 1/2 In NPT Valve

$52.99 – $67.28

SKU: N/A
Categories: ,
Tags: ,

Compact Saddle Clamp 1/2 In NPT Valve

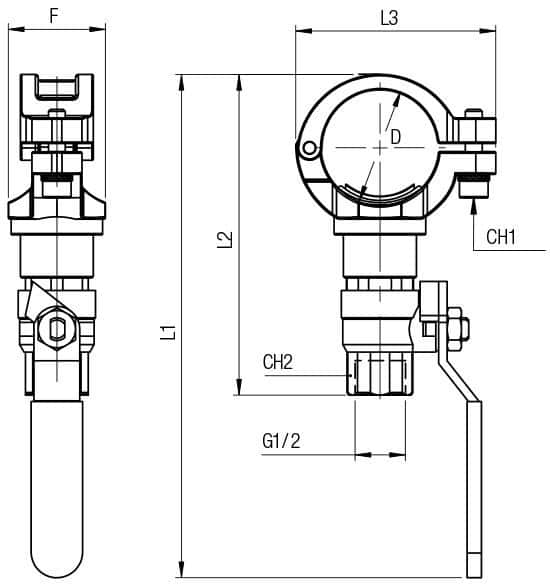

USA REF D G F L1 L2 L3 CH1 CH2 Bag
90255-25-08 25 1/2 1.004 (25.5) 6.339 (161) 3.839 (97.5) 2.185 (55.5) 0.197 (5) 0.984 (25) 1
90255-32-08 32 1/2 1.339 (34) 6.614 (168) 4.094 (104) 2.421 (61.5) 0.197 (5) 0.984 (25) 1
90255-40-08 40 1/2 1.339 (34) 6.929 (176) 4.409 (112) 2.756 (70) 0.197 (5) 0.984 (25) 1
90255-50-08 50 1/2 1.673 (42.5) 7.402 (188) 4.921 (125) 3.327 (84.5) 0.236 (6) 0.984 (25) 1
90255-63-08 63 1/2 1.673 (42.5) 7.874 (200) 5.394 (137) 3.819 (97) 0.236 (6) 0.984 (25) 1



Size

, , , ,
