Outlet Elbow 1/2″ NPT Female With Mounting Bracket

Infinity Wall Bracket Elbow (1/2″ Female NPT)

The Professional Termination for Drop Legs

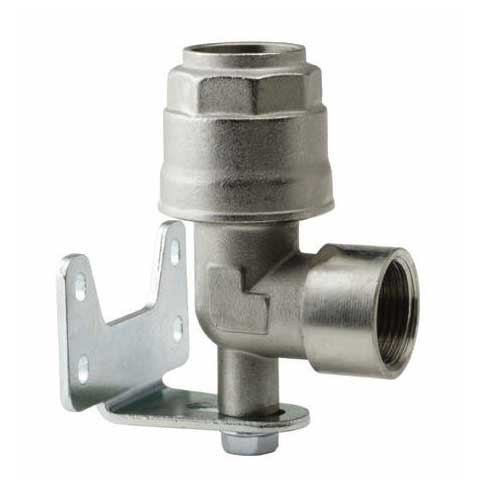

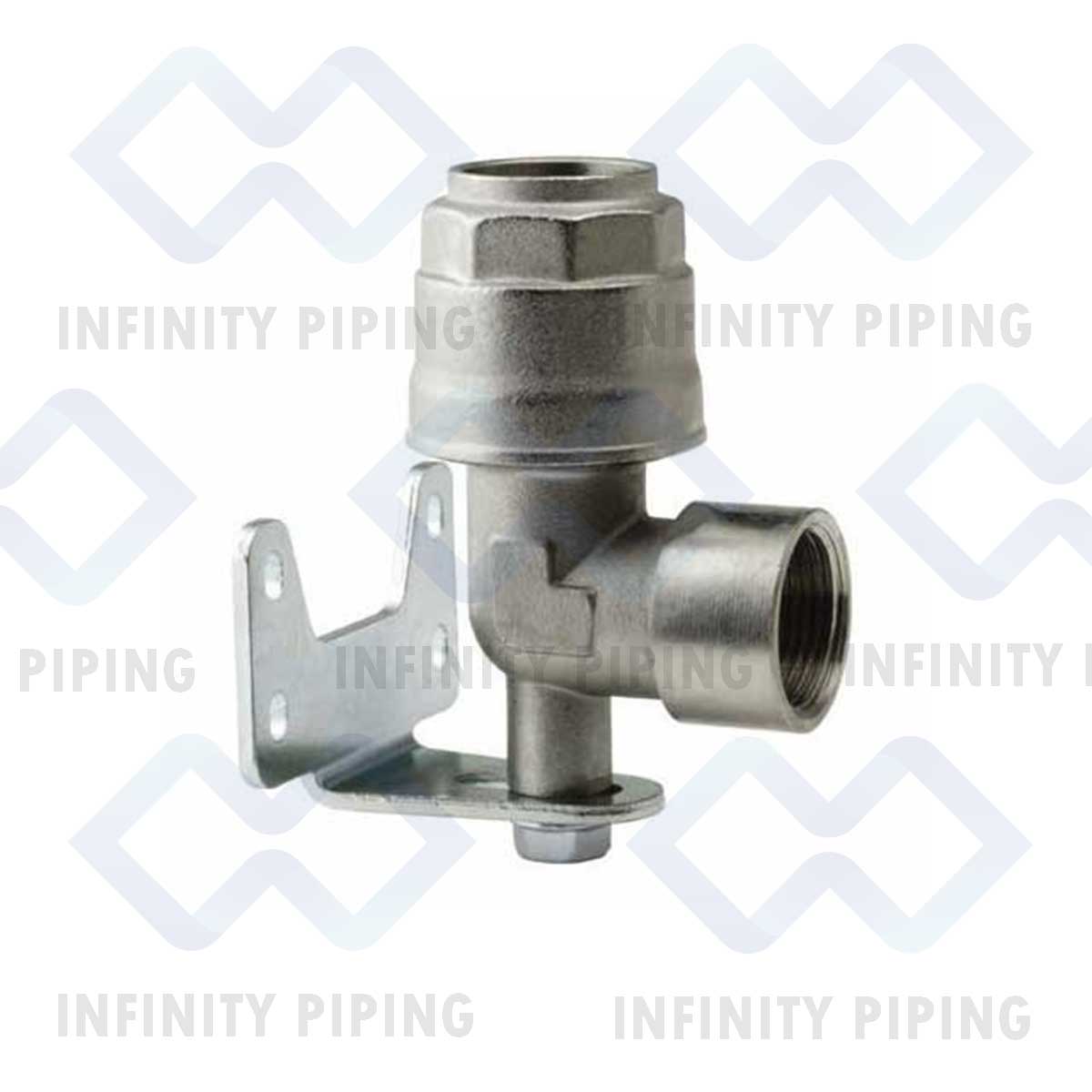

Finish your air drops with stability and precision using the Infinity Wall Bracket Elbow (1/2″ Female NPT). This essential component is designed to serve as the secure endpoint for your vertical drop legs, providing a rigid, wall-mounted outlet for connecting air tools, couplers, or hose reels.

Instead of leaving a pipe dangling loosely against the wall, this unit combines a 90° push-to-connect elbow with a heavy-duty mounting flange. It anchors the pipe firmly to the wall or column, ensuring that the physical stress of pulling hoses or plugging in tools is transferred to the structure, not the piping joints.

Key Features & Benefits

• Secure Anchor Point:

The integrated 2-hole mounting flange allows you to bolt the outlet securely to a wall, Unistrut channel, or machine frame. This prevents the drop leg from flexing or vibrating loose during daily use.

• 1/2″ Female NPT Outlet: Features a robust brass-reinforced thread. This standard size is perfect for screwing in:
  • Quick Couplers: For direct tool connection.
  • FRL Units: Mounting a Filter-Regulator-Lubricator directly to the wall.
  • Valves: Adding a shut-off ball valve for local isolation.
• Push-to-Connect Inlet: The top inlet accepts standard Infinity aluminum pipe (typically 20mm or 25mm). simply push the pipe in for an instant, permanent seal—no threading or gluing required.
• Water Trap Design: When installed as a “termination point” with the outlet facing forward or sideways, it allows for a clean transition. Note: For automatic water removal, consider using a Tee with a drain valve at the bottom.
• Corrosion Resistant: The body is made from high-quality engineering nylon or nickel-plated brass (depending on the specific series model), ensuring it withstands industrial environments without rusting.

Technical Specifications

• Inlet Connection: Push-to-Connect (fits 20mm or 25mm Pipe – Check selection)
• Outlet Connection: 1/2″ Female NPT
• Mounting: 2-Hole Flange (Bolts not included)
• Pressure Rating: Up to 232 PSI (16 Bar)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)
• Material: Nickel-Plated Brass / Technopolymer

Ideal Applications

• Workstations: The standard outlet for bench-level air drops.
• Hose Reel Supply: Mounting firmly to the wall next to a hose reel to provide the feed connection.
• Manifold Feeds: Acting as the supply point for a multi-port manifold block.

Installation Tip

Add a Valve: It is industry best practice to install a 1/2″ Male-to-Female Ball Valve into this bracket before adding your quick coupler. This allows the operator to shut off the air locally to change tools or service the coupler safely.

Anchor your air. Build a durable workstation with the Infinity Wall Bracket Elbow.
