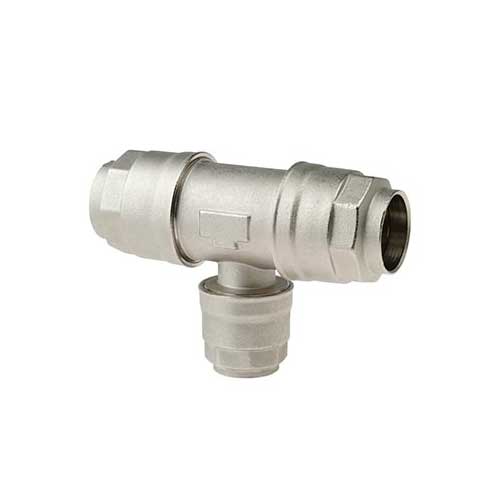

Infinity Outlet Reducing Tee With Water Trap Insert

Infinity Outlet Reducing Tee With Water Trap Insert

The “Zero Condensate” Solution for Vertical Drops

Protect your expensive tools and equipment from moisture damage with the Infinity Outlet Reducing Tee With Water Trap Insert. In any compressed air piping system, gravity causes moisture (condensate) to travel along the bottom of the pipe. Standard tee fittings allow this water to flow directly down into your vertical drops, leading to rusted tools, paint defects, and cylinder failure.

This innovative fitting solves that problem instantly. Featuring a specialized internal insert, it draws air from the center of the main pipe—the driest zone—rather than the bottom. This allows you to install a vertical drop directly from the mainline without the time-consuming labor of bending “gooseneck” or “swan neck” loops, saving you hours of installation time while delivering cleaner, drier air to your air tools.

Key Features & Benefits

• Integrated Moisture Protection: The patented internal design prevents condensate from entering the drop line. Water remains in the main header to be drained at a designated low point, while only clean, dry air enters your workstation drop.
• Replaces “Gooseneck” Piping: Traditionally, pipe installers had to bend pipe up and over (a “gooseneck”) to prevent water from falling into a drop. This fitting achieves the same result in a compact, single-piece component, drastically reducing installation time and material waste.
• Space-Saving Design: Because it eliminates the need for upward piping loops, this tee allows for a tighter, cleaner installation against ceilings and walls—ideal for facilities with limited overhead space.
• Simple “Push-to-Connect” Assembly: Like all Infinity fittings, simply push the pipe into the connection points for a secure, leak-free seal. No threading, welding, or gluing required.
• High-Durability Construction: Made from robust nickel-plated brass, resisting corrosion both inside and out to maintain optimal air quality.

Technical Specifications

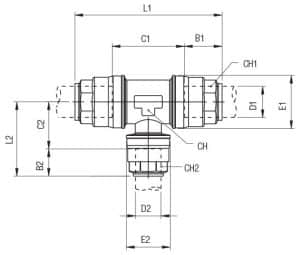

• Configuration: Reducing Tee (Main Line x Drop Size x Main Line)
• Special Feature: Internal Water Trap / Condensate Barrier Insert
• Body Material: Nickel-Plated Brass
• Pressure Rating: Up to 232 PSI (16 Bar)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)
• Compatibility: Compressed Air, Vacuum, Inert Gas

Ideal Applications

• Workstation Drops: The primary connection point where air leaves the ceiling loop to feed a bench or machine.
• Sensitive Equipment: Feeding air to paint booths, CNC machines, or laser cutters where moisture contamination is unacceptable.
• Rapid Installations: Projects where speed and labor cost reduction are critical.

Stop moisture before it reaches your tools. Choose the Infinity Reducing Tee with Water Trap for a drier, smarter air system.
