Infinity Equal Tee Connector (Nickel-Plated Brass & Aluminum)

The Centerpiece for Splitting Airflow

Efficiently branch your air supply in two directions with the Infinity Equal Tee Connector. This essential T-shaped fitting allows you to split a main line into a new loop, create a drop leg for a workstation, or interconnect multiple headers. Designed to maintain equal pressure and volume across all three ports, it is critical for building a balanced and effective Infinity Aluminum Piping System.

Whether you are distributing air to opposite sides of a shop or creating a complex grid for a manufacturing floor, the Equal Tee ensures reliable, leak-free performance.

Two Materials, One Standard of Performance

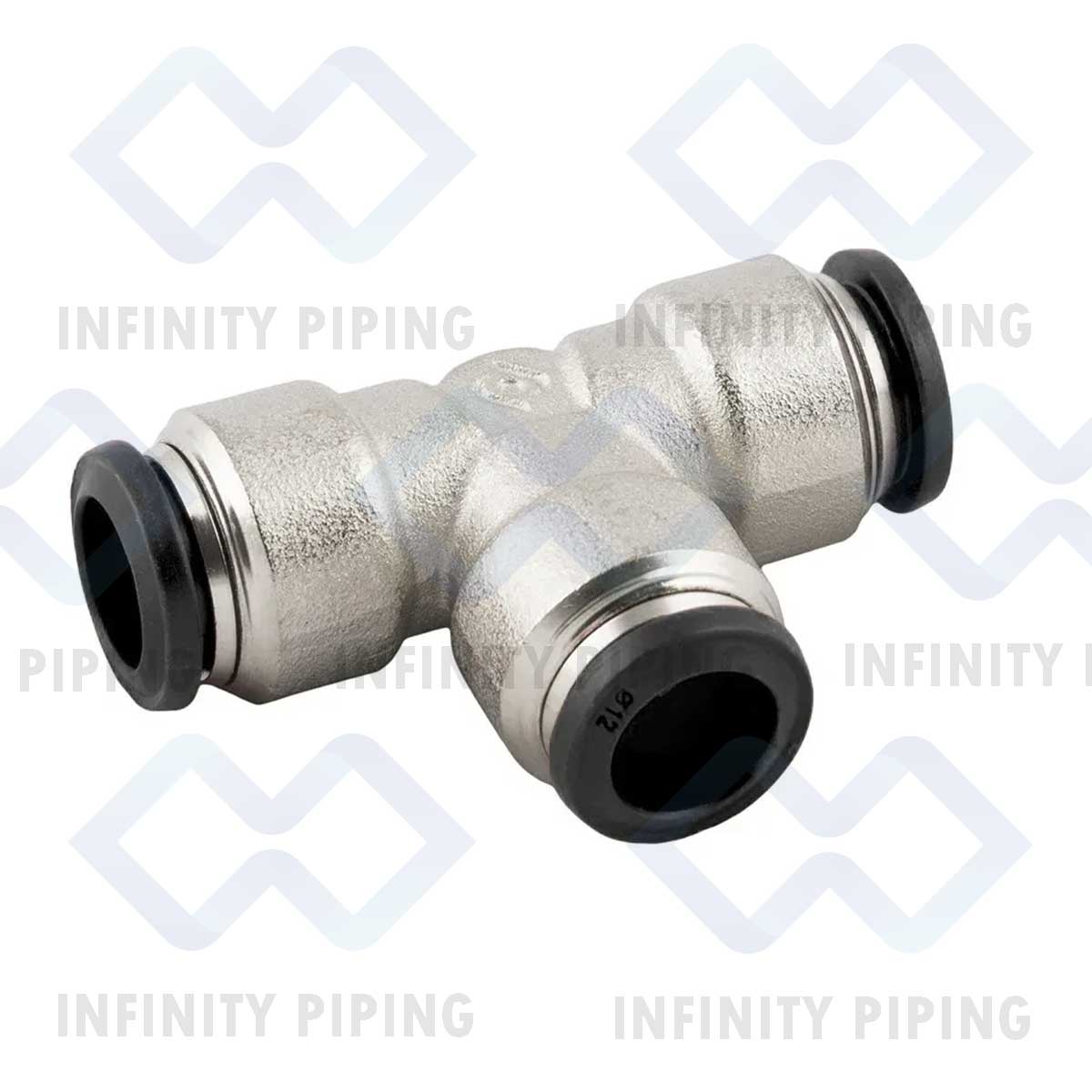

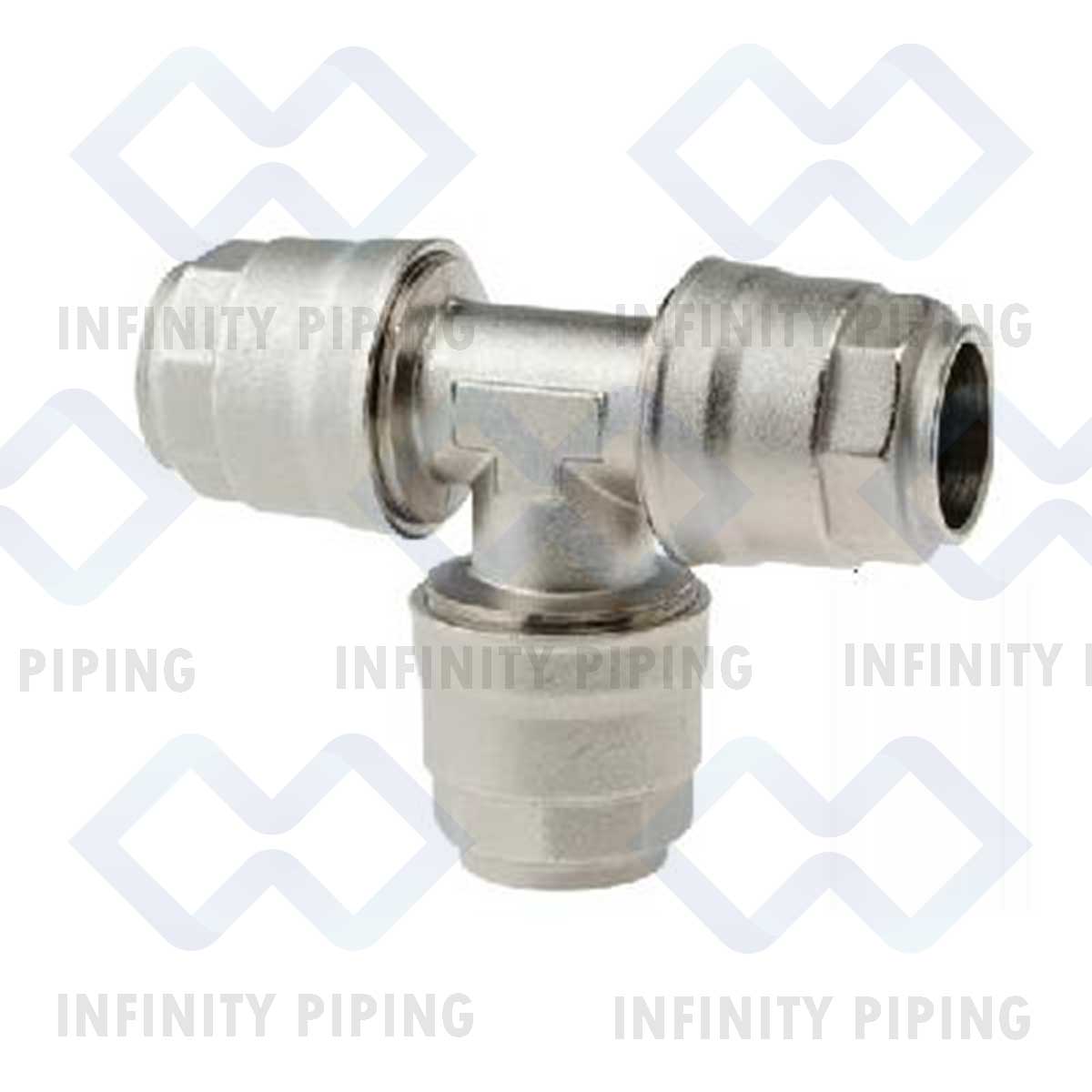

  1. Nickel-Plated Brass (20mm – 63mm)

For standard shop distribution and drops, the brass tee offers robust durability.

  • Simple Push-to-Connect: Utilize the patented Infinity grab-ring technology. Just push the pipe into any of the three ports for an instant, permanent lock—no threading required.
  • Corrosion Resistant: The tough nickel plating protects against moisture and oils, ensuring the fitting remains clean and functional for decades.
  • Ideal for Drops: Perfect for installing at the top of a column to send air down to a workstation while continuing the main line across the ceiling.

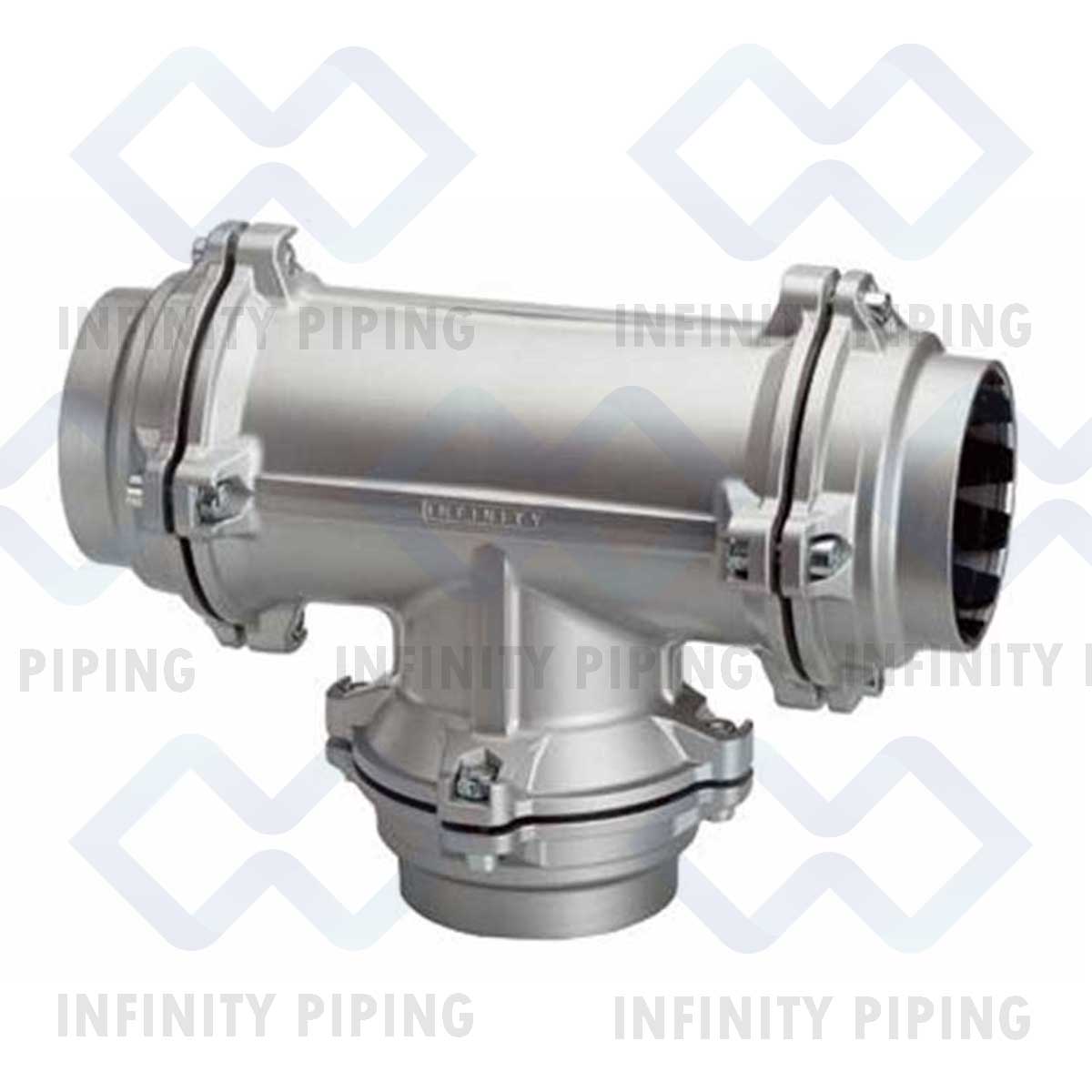

  1. Die-Cast Aluminum (80mm – 168mm)

For industrial main headers, the aluminum tee handles high-volume airflow with ease.

  • High-Flow Design: Engineered to split massive volumes of air without creating turbulence or “dead zones” that kill pressure.
  • Secure Industrial Grip: Uses heavy-duty clamp or flange-style connections to withstand the dynamic forces of large-bore air movement.
  • Lightweight Strength: Significantly lighter than iron tees, reducing the load on your structural supports while maintaining industrial-grade rigidity.

Key Features & Benefits

  • Full-Bore Flow: The fitting fits over the pipe, maintaining the full internal diameter across all three connection points. This ensures your air compressor power is distributed evenly without restriction.
  • 100% Leak-Free: Equipped with premium NBR seals on all three ports, creating an airtight barrier immediately upon installation. Prevents the common leaks found in threaded steel tees that waste energy.
  • Modular & Reusable: System expansion is easy. The Infinity Equal Tee can be disconnected and moved if your facility layout changes, making it a smart long-term investment.
  • Versatile Application: Use it to create ring mains, install drops, or manifold multiple compressors together.

Technical Specifications

  • Configuration: T-shaped (3 Equal Ports)
  • Pressure Rating: Up to 232 PSI (16 Bar)
  • Temperature Range: -4°F to +176°F (-20°C to +80°C)
  • Materials:
    • 20mm – 63mm: Nickel-Plated Brass Body, NBR Seals
    • 80mm – 168mm: Die-Cast Aluminum Alloy, NBR Seals
  • Application: Splitting one air line into two, or combining two lines into one.

Branch out with confidence. Choose the Infinity Equal Tee for a balanced, high-performance air network.

Infinity Equal Tee

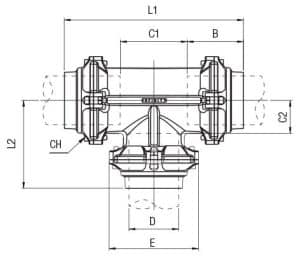

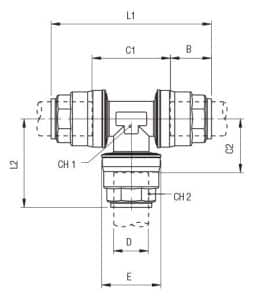

USA REF D E B C1 C2 L1 L2 CH1 CH2 Bag
90230-20 20 1.358 (34.5) 1.240 (31.5) 1.358 (34.5) 0.886 (22.5) 3.858 (98) 2.146 (54.5) 0.827 (21) 1.181 (30) 3
90230-25 25 1.673 (42.5) 1.516 (38.5) 1.476 (37.5) 1.024 (26) 4.469 (113.5) 2.559 (65) 1.024 (26) 1.378 (35) 3
90230-32 32 2.047 (52) 1.811 (46) 1.831 (46.5) 1.240 (31.5) 5.453 (138.5) 3.031 (77) 1.339 (34) 1.772 (45) 2
90230-40 40 2.480 (63) 2.047 (52) 2.185 (55.5) 1.496 (38) 6.280 (159.5) 3.543 (90) 1.614 (41) 2.165 (55) 1
90230-63 63 3.622 (92) 2.323 (59) 3.425 (87) 2.185 (55.5) 8.091 (205.5) 4.508 (114.5) 2.559 (65) 2.756 (70) 1
90230-80 80 5.709 (145) 3.583 (91) 4.291 (109) 2.146 (54.5) 11.476 (291.5) 5.433 (138) 0.236 (6) 1
90230-110 110 7.874 (200) 4.941 (125.5) 5.925 (150.5) 2.953 (75) 15.787 (401) 7.894 (200.5) 0.315 (8) 1
90230-168 168 12.047 (306) 7.638 (194) 9.252 (235) 4.626 (117.5) 24.528 (623) 12.264 (311.5) 0.394 (10) 1
