Double Outlet Elbow 1/2″ NPT Female With Mounting Bracket

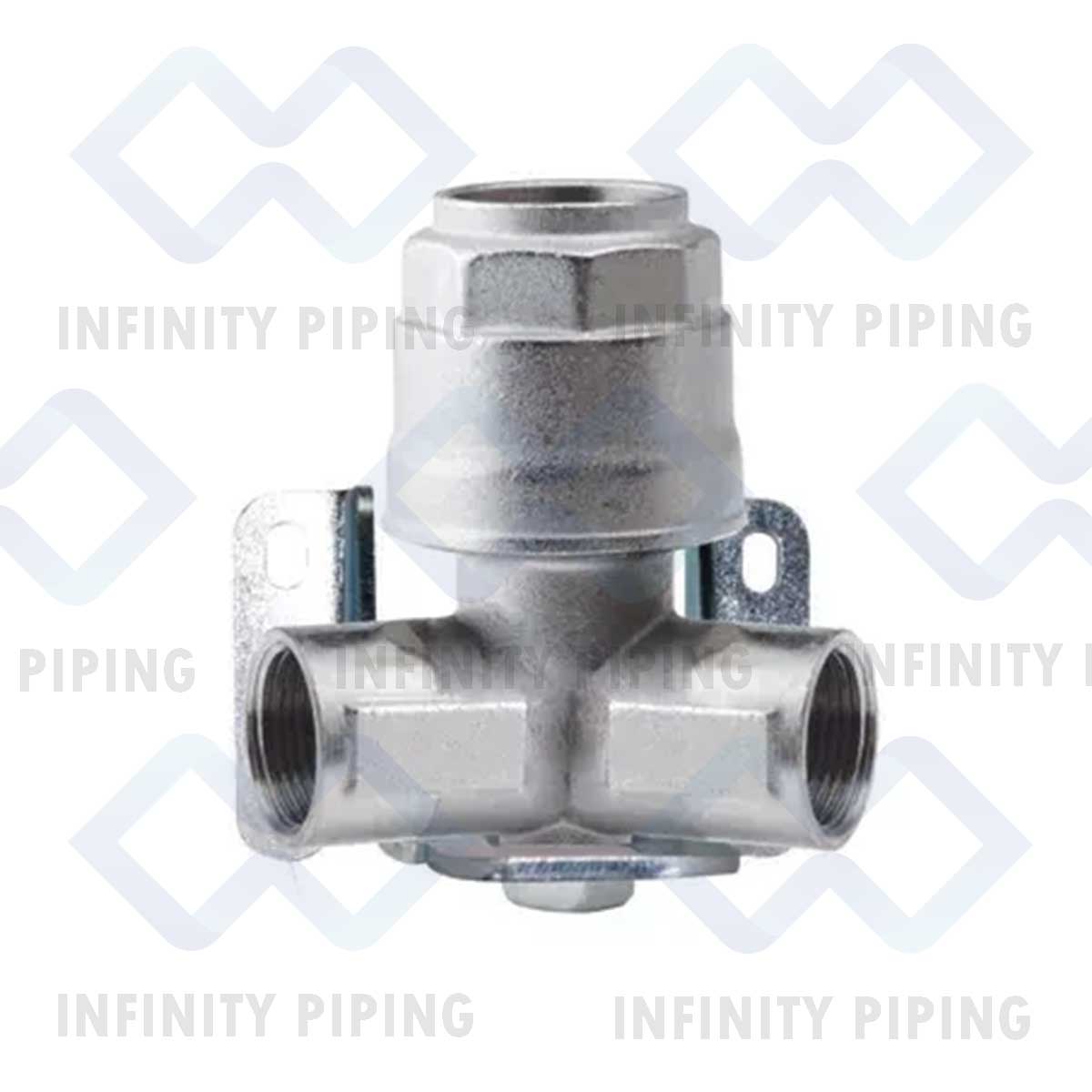

Infinity Double Outlet Wall Bracket (1/2″ Female NPT)

Double the Connectivity at Every Drop

Maximize the utility of your air drops with the Infinity Double Outlet Wall Bracket. This specialized termination point does the work of two fittings by taking a single vertical drop leg and splitting it into two separate 1/2″ threaded outlets.

Designed for high-demand workstations, this unit acts as a rigid anchor point that secures your piping to the wall while providing immediate access for multiple tools. Instead of installing a single outlet and cluttering it with external splitters or tee fittings, this bracket provides a clean, professional dual-port solution right out of the box.

Key Features & Benefits

• Dual 1/2″ NPT Outlets:

Features two female NPT ports (typically angled for easy access). This allows two operators to work from the same drop, or lets a single user connect two different devices simultaneously—such as a dedicated blow gun on one side and an impact wrench or hose reel on the other.

• Integrated Mounting Flange: Built with a heavy-duty 2-hole mounting bracket. This anchors the drop leg firmly to a wall, beam, or Unistrut channel, preventing the pipe from flexing or vibrating when hoses are pulled.
• Push-to-Connect Inlet: The top inlet features Infinity’s rapid-connection technology. Simply push your 20mm or 25mm aluminum pipe into the socket for a permanent, leak-free seal—no threading or welding required on the supply line.
• Water Trap Geometry: When installed as a termination point on a vertical drop, the 90° internal flow path helps prevent condensate from gravity-draining directly into your tools (depending on specific flow velocity), especially if combined with a drip leg tee above.
• Durability: Constructed from robust Nickel-Plated Brass or high-grade Technopolymer (depending on the specific series), offering superior resistance to shop abuse and corrosion.

Technical Specifications

• Inlet Connection: Push-to-Connect (Fits 20mm or 25mm Tube)
• Outlet Connections: 2 x 1/2″ Female NPT
• Mounting: Integrated 2-Hole Wall Flange
• Pressure Rating: Up to 232 PSI (16 Bar)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)
• Vacuum Rating: Suitable for vacuum service up to 99%

Ideal Applications

• Dual-User Workbenches: Allowing two technicians to share a single air supply drop.
• Multi-Tool Stations: Keep a tire inflator and an impact gun connected permanently without swapping hoses.
• FRL + Auxiliary: Use one port to feed a Filter-Regulator-Lubricator for a machine, and keep the second port “raw” for a general-purpose blow gun.

Installation Tip

Isolate Each Side: It is best practice to install a 1/2″ Ball Valve into each of the two outlets before adding your couplers. This allows you to shut off one side for maintenance (e.g., changing a leaking coupler) while the other side remains operational.

Get twice the work done. Upgrade your drops with the Infinity Double Outlet Wall Bracket.
