Infinity Tube to Tube Reducers

Infinity Tube-to-Tube Reducer (Large Diameter Series)

The Inline Reducing Solution for Heavy Industrial Mains

Simplify your high-volume air network with the Infinity Tube-to-Tube Reducer. Designed specifically for the large-bore Infinity series (80mm, 110mm, and 168mm), this fitting provides a direct, straight-line transition between different pipe diameters without the need for heavy steel reducers, welding, or complex grooving tools.

Perfect for stepping down a main 110mm ring main to an 80mm sub-header, or transitioning from a compressor discharge to the plant distribution loop, this reducer maintains the lightweight, leak-free performance that defines the Infinity system.

Key Features & Benefits

• Direct Inline Transition:

Connects two unequal pipe sizes (e.g., 110mm to 80mm) in a straight line. The concentric design ensures smooth airflow from the larger bore to the smaller bore, minimizing pressure drop and turbulence.

• No Grooving Required: Unlike older “Elevation” or Victaulic-style systems that required roll-grooving the pipe ends, this reducer utilizes Infinity’s advanced large-diameter connection technology. Simply push the pipe into the fitting and tighten the integrated heavy-duty bolts to secure the grip—saving hours of installation time.
• Full-Bore Flow: The internal geometry is precision-engineered to funnel air efficiently, ensuring your downstream equipment receives the maximum possible volume and pressure.
• Lightweight Aluminum Construction: Made from high-strength die-cast aluminum alloy. It is a fraction of the weight of cast iron or steel reducers, significantly reducing the strain on ceiling hangers and making overhead installation safer for your crew.
• Corrosion-Free Reliability: The aluminum body and internal components are immune to rust and scale, ensuring that your compressed air remains clean and contaminant-free for the life of the system.

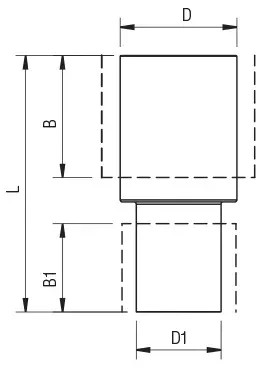

Technical Specifications

• Product Type: Straight Reducing Coupling
• Connection Style: Large Diameter Push-to-Connect (Bolt-Secure)
• Material: Die-Cast Aluminum Alloy
• Pressure Rating: Up to 232 PSI (16 Bar)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)
• Common Configurations:
  • 110mm x 80mm
  • 168mm x 110mm
  • 80mm x 63mm (Transition from large bore to standard bore)

Installation Tip

For the 80mm – 168mm series, simply cut the pipe square, chamfer/deburr the edge, and push it into the reducer. Then, torque the four bolts on the fitting collar to the specified rating to engage the stainless steel grab ring and seal. No threading, welding, or grooving is needed.

Step down your system size with speed and precision. Use the Infinity Large Diameter Tube-to-Tube Reducer.
