Infinity Saddle Clamp NPT Female

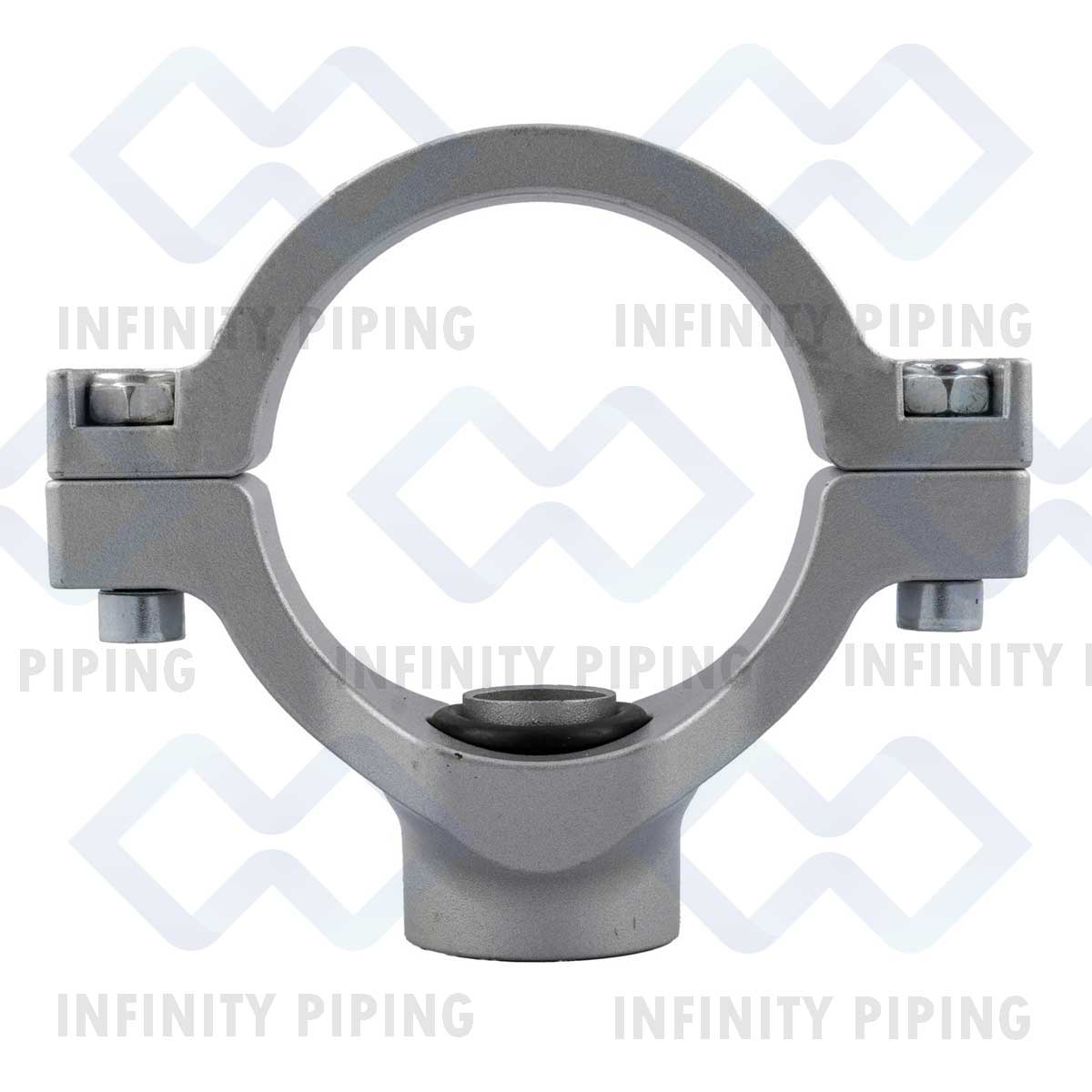

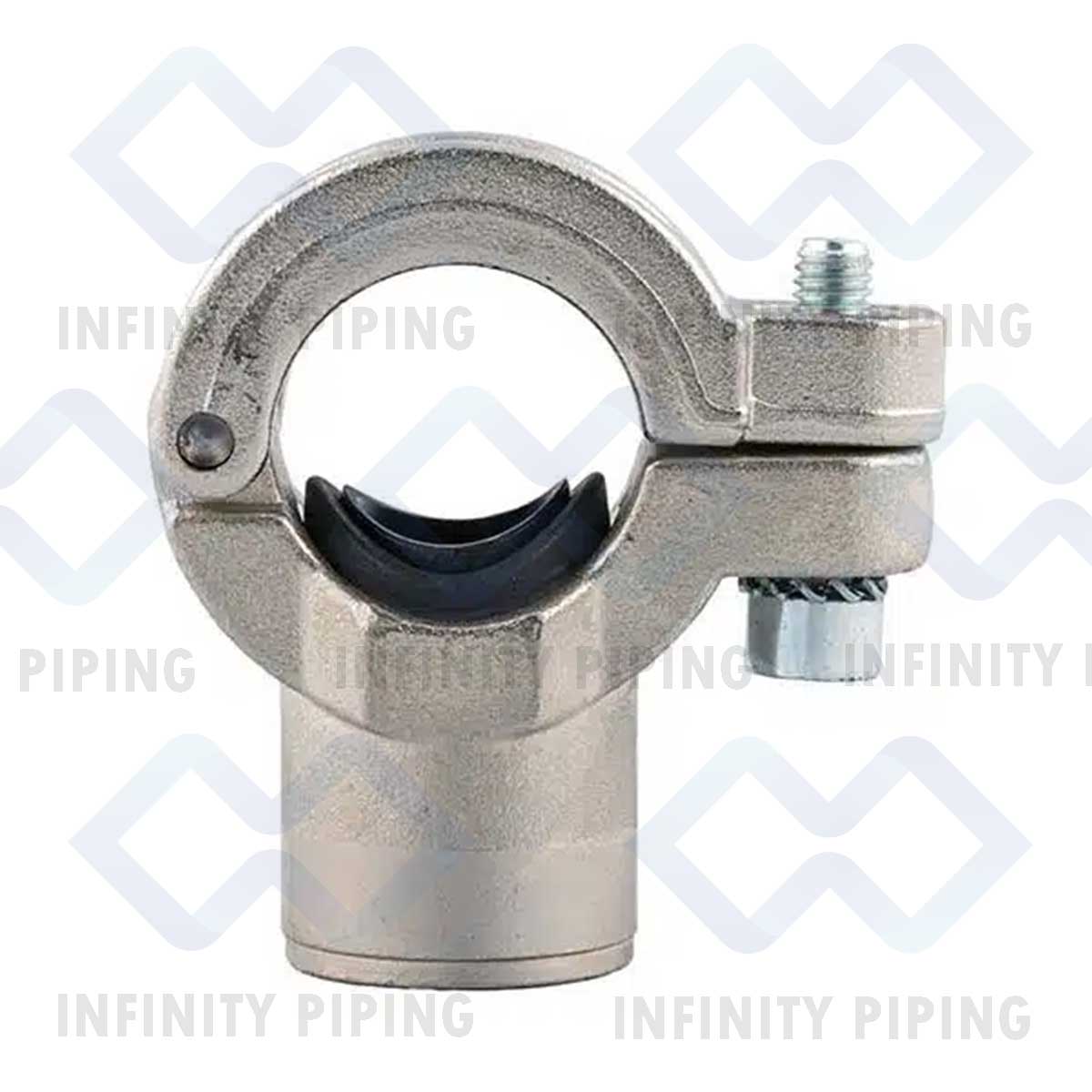

Infinity Outlet – Saddle Clamp Reducer

The Quickest Way to Add a Drop to an Existing Main

Expand your system instantly without cutting your main line using the Infinity Saddle Clamp Reducer. This specialized fitting is the fastest, least intrusive way to create a new outlet point or “drop leg” from an existing header pipe.

Traditional plumbing requires you to cut the pipe, de-burr it, and wrestle a large Tee fitting into place—often requiring you to shut down the system and drain the air. The Saddle Clamp Reducer eliminates this hassle. You simply drill a hole, clamp the saddle over it, and you have a secure, threaded or push-to-connect outlet ready to go.

Key Features & Benefits

• “Hot Tap” Capable (No Cutting Required):

The saddle design allows you to add a drop anywhere along a rigid pipe run. By using the specialized Infinity Drill Jig, you can drill into the pipe under pressure (with the proper hot-tap tool) or simply depressurize briefly to drill a single hole, rather than dismantling the entire line.

• Condensate Protection (The “Gooseneck” Effect): When installed on the side or top of the pipe, the saddle outlet prevents moisture traveling along the bottom of the main pipe from entering your new drop leg. This creates a natural water trap, ensuring your tools receive drier air.
• Reduced Outlet Size: Specifically designed to transition from a large main header (e.g., 63mm, 50mm, or 40mm) down to a smaller diameter suitable for a drop leg (typically 20mm or 25mm). It acts as both a Tee and a Reducer in one component.
• Self-Aligning & Secure: Features a molded internal lug that fits into the drilled hole, ensuring the saddle cannot rotate or slide out of position once tightened. The heavy-duty bolts compress the internal O-ring against the outer pipe wall for a leak-proof seal.
• Corrosion Resistant: Made from high-quality engineering nylon or aluminum (depending on size), preventing rust and galvanic corrosion issues common with iron saddles.

Technical Specifications

• Type: Saddle Clamp with Reducing Outlet
• Main Line Compatibility: Fits 32mm, 40mm, 50mm, and 63mm Infinity Pipe
• Outlet Connection:
  • Female Threaded: (e.g., 1/2″ or 3/4″ NPT) for screwing in valves or nipples.
  • Push-to-Connect: (e.g., 20mm or 25mm) for plugging in a drop tube directly.
• Seal Material: NBR/Viton O-Ring
• Pressure Rating: Up to 232 PSI (16 Bar)
• Installation Requirement: Requires a specific drill bit/hole saw size (use Infinity Drill Jig).

Ideal Applications

• Adding New Drops: When you buy a new machine and need air right here, but the main line is 20 feet overhead.
• Sensor Installation: Creating a port to screw in a pressure transducer or dew point sensor on a large main header.
• Vertical Drops: Transitioning from a 63mm loop down to a 25mm line to feed a workstation.

Installation Tip

Use the Drill Jig: Never guess the hole location. Use the Infinity Drill Jig corresponding to your pipe size. It guides the drill bit to the exact center of the pipe and prevents the bit from “walking,” ensuring the saddle seal aligns perfectly with the hole.

Expand your system in minutes, not hours. Add drops anywhere with the Infinity Saddle Clamp Reducer.
