Infinity 90 Degree Elbow

Infinity 90° Elbow Connector (Nickel-Plated Brass & Aluminum)

The Corner piece of Efficient Air Distribution

Master the layout of your facility with the Infinity 90° Elbow Connector. This fundamental fitting allows your Infinity Aluminum Piping System to make sharp, secure turns, routing compressed air around corners, down columns, and across ceilings with ease. Unlike traditional plumbing elbows that can restrict airflow, the Infinity 90° Elbow is engineered with a full-flow design to minimize turbulence and pressure loss, ensuring your air tools get the power they need.

Available in Nickel-Plated Brass for standard sizes and Aluminum for industrial mainlines, this connector provides a reliable, leak-free seal for every bend in your network.

Two Materials, One Standard of Performance

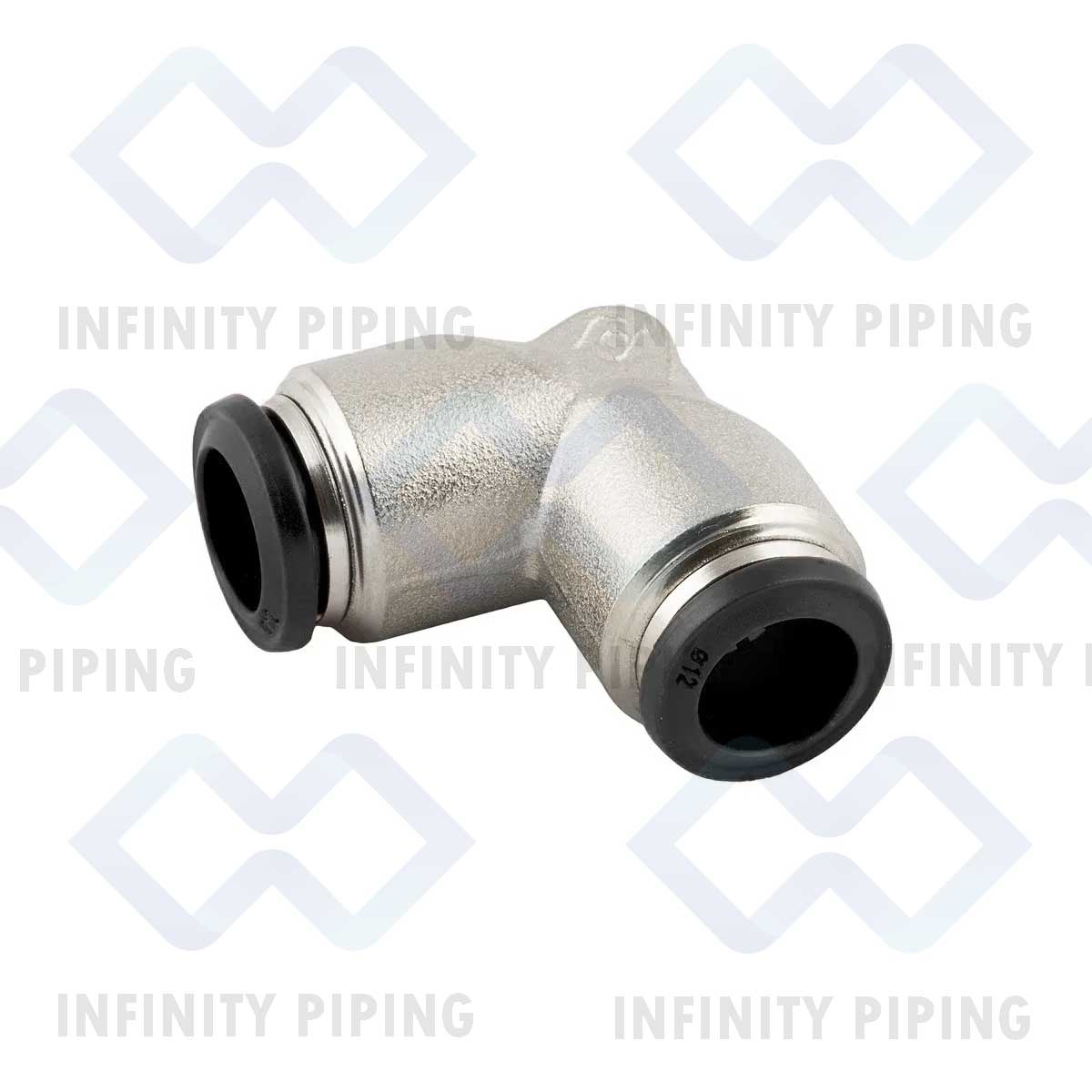

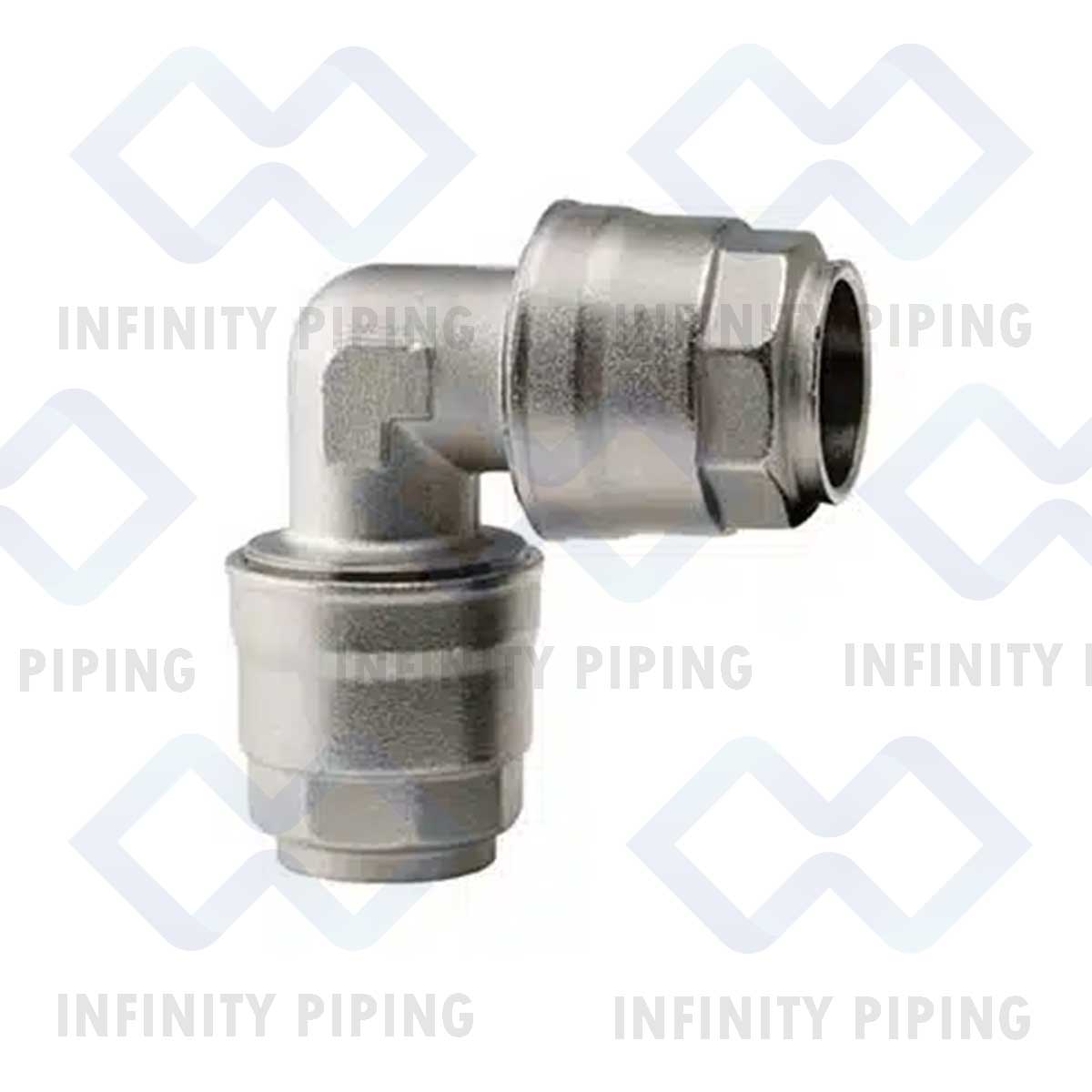

1. Nickel-Plated Brass (20mm – 63mm)

For shop loops and workstation drops, the brass elbow offers rugged durability and ease of use.

• Simple Push-to-Connect: Features the patented Infinity grab-ring technology. Just push the pipe in for an instant lock—no threading or sweating required.
• Corrosion Resistant: The durable nickel plating withstands shop environments, moisture, and oils, maintaining a clean, professional appearance.
• Tight Radius: Perfect for tucking pipe neatly into corners or making compact drops down walls.

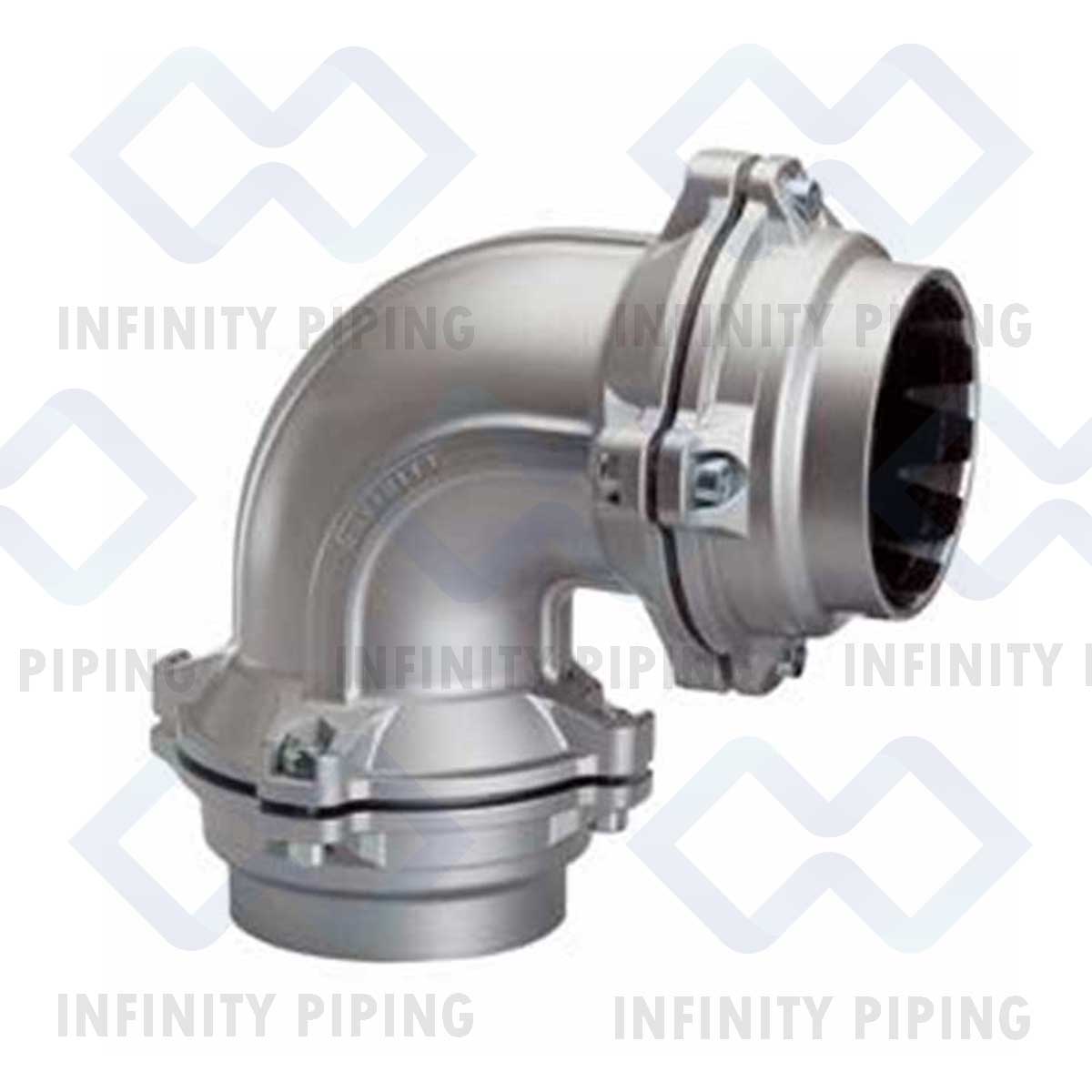

2. Die-Cast Aluminum (80mm – 168mm)

For large-scale industrial ring mains, the aluminum elbow provides strength without the weight.

• Aerodynamic Design: Engineered with a smooth internal curve to guide high volumes of air efficiently, reducing the energy cost associated with sharp direction changes.
• Secure Industrial Grip: Utilizes a heavy-duty bolt-clamp or flange-style connection to ensure the fitting stays secure even under the high kinetic energy of large-bore airflow.
• Lightweight: Significantly easier to install overhead than cast iron or steel elbows, reducing installation fatigue and hanger load.

Key Features & Benefits

• Full-Bore Efficiency: The fitting fits over the pipe, not inside it. This maintains the full internal diameter of the tubing through the turn, eliminating flow restriction and maximizing the efficiency of your air compressor.
• 100% Leak-Free: Equipped with premium NBR seals that create an airtight barrier immediately upon installation. Say goodbye to the air leaks common with threaded galvanized elbows.
• Modular & Reusable: Need to move a drop or expand a room? The Infinity 90° Elbow allows for disassembly and reuse, making it the most cost-effective choice for growing businesses.
• Clean Air Ready: The corrosion-free materials ensure that no rust or scale is generated at the bend, protecting downstream valves and cylinders.

Technical Specifications

• Configuration: 90° Tube-to-Tube Elbow
• Pressure Rating: Up to 232 PSI (16 Bar)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)
• Materials:
  • 20mm – 63mm: Nickel-Plated Brass Body, NBR Seals
  • 80mm – 168mm: Die-Cast Aluminum Alloy, NBR Seals
• Application: Creating right-angle turns in Compressed Air, Vacuum, or Inert Gas lines.

Turn corners with confidence. Choose the Infinity 90° Elbow for a secure, high-flow piping layout.
