Infinity Manifolds

Infinity Manifold Blocks (2-Way & 4-Way)

The Professional Splitter for Workstations and Machines

Organize your air drops and eliminate the tangle of tees and nipples with the Infinity Manifold Block. These heavy-duty distribution blocks are the cleanest way to turn a single supply line into multiple outlet points, perfect for supplying air to workbenches, automated machinery, or assembly clusters.

Instead of stringing together multiple “tee” fittings—which creates a weak, leaky, and ugly assembly—these manifolds are machined from a solid block of metal. They provide a rigid, compact, and professional hub for your pneumatic connections.

Key Features & Benefits

• Solid Block Construction:

Machined from high-quality Nickel-Plated Brass or Anodized Aluminum. This solid construction handles high pressure without flexing and resists the corrosion often found in humid compressed air lines.

• Multiple Outlet Options:

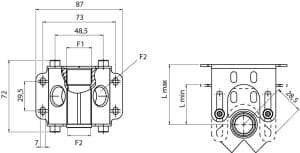

  • 2-Way Manifold: Features two outlets (typically side-by-side or opposing). Ideal for dual-tool workstations.

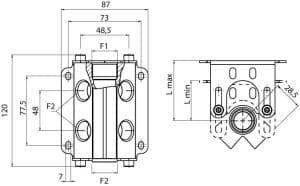

  • 4-Way Manifold: Features four outlets. Perfect for “island” workstations where four operators share a central air drop, or for feeding multiple valves on a single machine.
• Versatile Mounting: Designed with pre-drilled through-holes, allowing you to bolt the block securely to a wall, a machine frame, or a workbench leg. This ensures that when you pull on a hose, the stress is taken by the mount, not the pipe threads.
• Clean Organization: Allows you to centralize your connections. You can run one main feed line into the end of the block and have neat, parallel exit lines for your tools.

Technical Specifications

• Material: Nickel-Plated Brass
• Configuration: Single Inlet x Multiple Outlets
• Inlet Port: Typically 1/2″ or 3/4″ Female NPT (Check specific size)
• Outlet Ports: Typically 1/4″, 3/8″, or 1/2″ Female NPT
• Pressure Rating: Up to 232 PSI (16 Bar)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)

Ideal Applications

• Workbench Drops: Mount the block under the edge of a table to give the operator 2 or 4 distinct plug-in points for sanders, drills, and blow guns.
• Automation Panels: Acts as a supply header inside a control cabinet, feeding air to multiple solenoid valves.
• Hose Reel Banks: Feeding a row of hose reels from a single hard-piped drop.

Installation Tip

Plug What You Don’t Use: If you buy a 4-Way block but only need 3 outlets today, simply install a Threaded Plug in the unused port. This gives you the flexibility to expand in the future without replacing the manifold.

Clean up your connections. Distribute air professionally with the Infinity Manifold Block.
