Tool Balancer

Infinity Tool Balancer (with Integrated Coiled Tubing)

Zero Gravity Comfort with Zero Clutter

Revolutionize your assembly lines and workstations with the Infinity Tool Balancer. Unlike standard balancers that just hold a tool up with a steel cable—requiring a separate, tangling air hose—this 2-in-1 solution integrates the air supply directly into the suspension coil.

By using the coiled hose itself to support the weight of the pneumatic tool, the Infinity Balancer creates a “weightless” operating experience. The operator can move the tool up and down effortlessly, reducing the physical strain of repetitive lifting while keeping the workspace completely free of trailing hoses and trip hazards.

Key Features & Benefits

• 2-in-1 Suspension & Air Supply:

Eliminates the mess of taping an air hose to a steel support cable. The robust polyurethane coil is the support, delivering compressed air to the tool while holding its weight. This results in the cleanest possible workstation setup.

• Ergonomic “Zero Gravity” Effect: Reduces operator fatigue significantly. The spring-loaded tension counteracts the weight of the tool (e.g., impact wrench, grinder, or drill), making it feel virtually weightless in the operator’s hand. This reduces wrist strain and back injury risks.

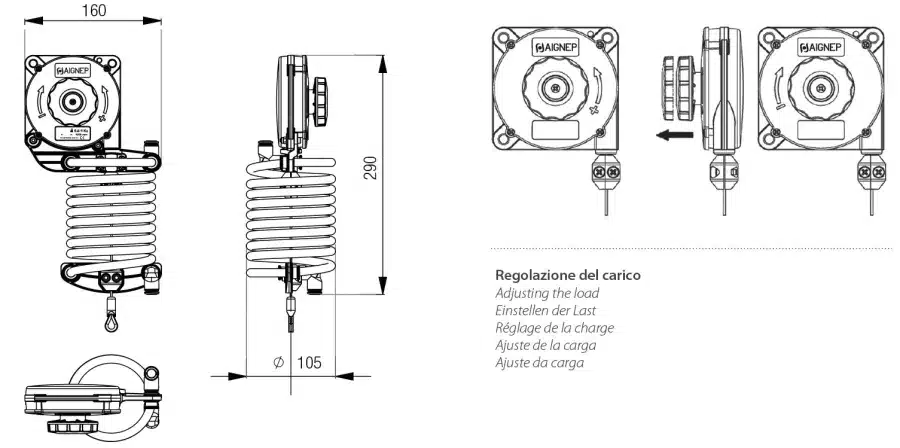

• Adjustable Tension Control: Features an easy-to-use tension knob. You can fine-tune the retraction force to match the specific weight of your tool, ensuring it hangs exactly where you want it—neither snapping up too fast nor sagging down.
• Safety & Organization: When the operator lets go, the tool automatically retracts to a safe, overhead position. This prevents expensive tools from being dropped on the concrete and keeps hoses off the floor where they can be tripped over or run over by forklifts.
• Durable Housing: The internal spring mechanism is protected by a shock-resistant industrial housing, ensuring reliable performance even in tough manufacturing environments.

Technical Specifications

• Function: Suspends tool and supplies compressed air simultaneously.
• Hose Material: High-Flex Polyurethane (PU) Coil.
• Connections: Male NPT (Top Inlet) x Male NPT (Tool Outlet).
• Capacity Range: Adjustable (Check specific model for weight rating, e.g., 2-5 lbs, 5-10 lbs).
• Pressure Rating: Up to 145 PSI (10 Bar) – Standard for air tools.
• Stroke Length: Variable based on coil extension (typically 4-6 feet working range).

Ideal Applications

• Assembly Lines: Perfect for automotive or electronics assembly where operators perform the same bolting task repeatedly.
• Packaging Stations: Holding pneumatic staplers or nailers just above the packing table.
• Maintenance Benches: Keeping impact wrenches suspended and ready for instant use.

Installation Tip

Mount the balancer to an Infinity Sliding Trolley on an overhead rail system. This allows the tool to travel left and right along the assembly line, giving the operator maximum freedom of movement.

Reduce fatigue and boost productivity. Make your tools weightless with the Infinity Tool Balancer.
