Infinity Pipe Clips

Infinity Pipe Hangers (Plastic & Nylon Series)

The Professional Solution for System Support and Suspension

Ensure your Infinity Aluminum Piping System is installed securely and positioned for maximum efficiency with genuine Infinity Pipe Hangers. Unlike rigid metal conduit straps that can damage aluminum or restrict necessary movement, these hangers are engineered to hold the pipe firmly while allowing for the natural thermal expansion and contraction of the system.

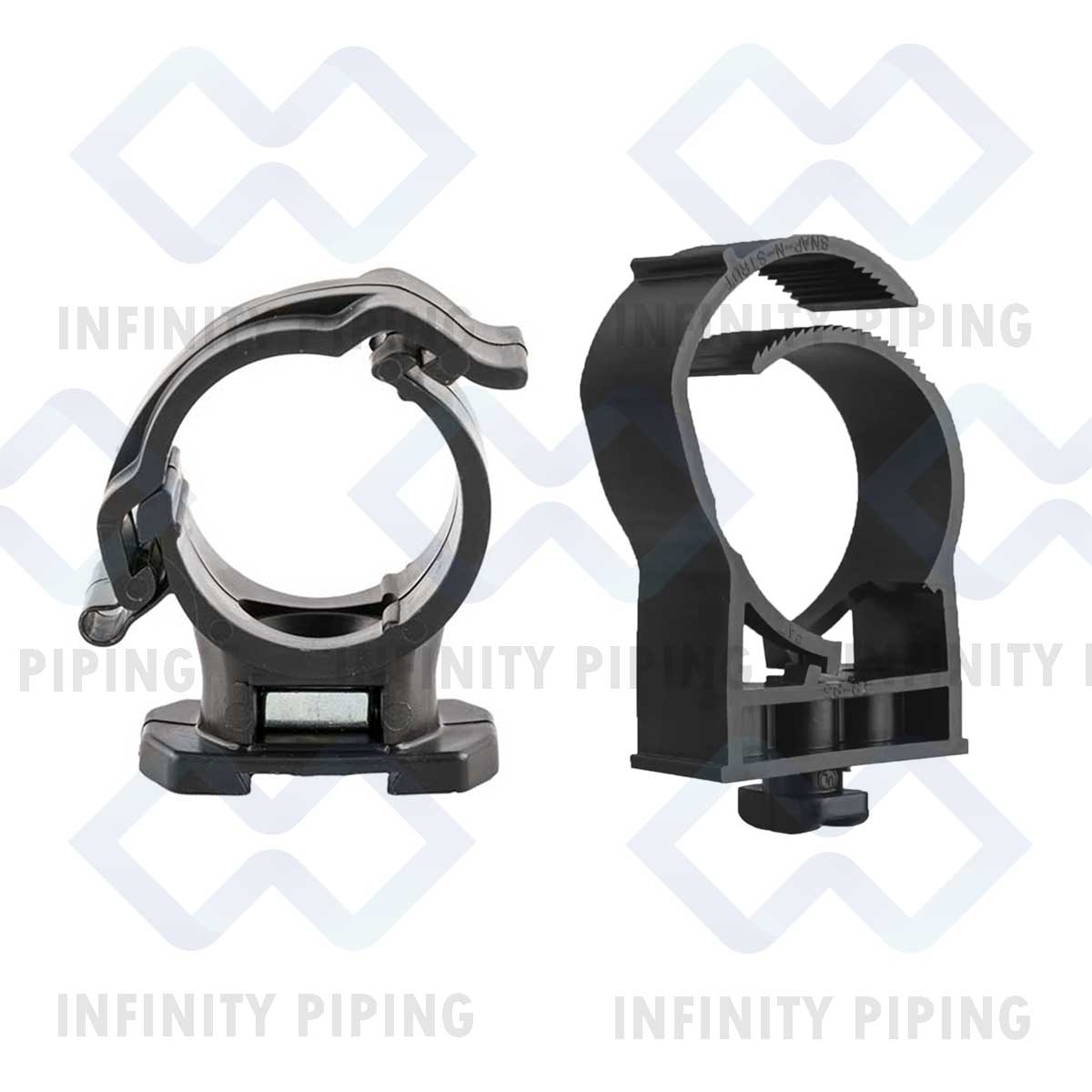

We offer two distinct series designed for different mounting applications: the Plastic Tube Hanger for direct surface mounting, and the Nylon Tube Hanger featuring an integrated 1/4-20 UNC nut for ceiling suspension.

1. Plastic Tube Hanger (Surface Mount Series)

Ideal for Walls, Beams, and Channel Strut The standard Plastic Tube Hanger is designed for rapid installation directly onto flat surfaces. Manufactured from durable, corrosion-proof technopolymer, these clips provide a clean and organized look for your facility.

• Mounting Method: Features a central mounting hole designed for a standard screw or masonry anchor.
• Smart Alignment: Designed with interlocking side profiles, allowing you to “gang” multiple clips together. This ensures perfect parallel alignment when running multiple air lines (e.g., different pressures or gas types) side-by-side.
• Snap-In Security: The pipe pushes into the clip with a positive “snap,” holding it in place during layout while still allowing axial movement for thermal expansion.

2. Nylon Tube Hanger (Suspension Series)

Integrated 1/4-20 Nut for Threaded Rod The Nylon Tube Hanger is the heavy-duty choice for overhead installations. Unlike standard clips that require extra hardware or adapters to hang from a ceiling, this hanger features a molded-in 1/4-20 UNC nut.

• Direct Threaded Rod Connection: Screw standard 1/4-20 threaded rod directly into the top of the clip. This eliminates the need for beam clamps or complex bracketry, saving massive amounts of labor when suspending pipe from high ceilings or bar joists.
• Heavy-Duty Material: Constructed from high-strength Nylon, this series offers superior durability for suspending long, heavy runs of pipe and handling the vibration associated with air compressors.
• Streamlined Suspension: Provides the cleanest possible look for overhead drops, keeping the pipe level and secure without bulky external brackets.

Key Features & Benefits (Both Series)

• Thermal Expansion Ready: Aluminum pipe expands and contracts with temperature changes. Both hanger types feature a smooth internal bore that allows the pipe to “glide” axially through the clip. This prevents the bowing, buckling, and stress fractures common with rigid metal clamps.
• Corrosion & Chemical Resistance: Impervious to moisture, oils, and industrial fumes. These hangers will never rust or stain your facility walls, making them ideal for clean environments like food processing or pharmaceutical plants.
• Professional Organization: Whether mounted to a wall or suspended from the roof, these clips ensure your compressed air piping remains straight, level, and vibration-free.

Technical Specifications

• Plastic Series:
  • Material: Technopolymer
  • Mounting: Central Screw Hole (Surface Mount)
  • Features: Side Interlocks for parallel runs
• Nylon Series:
  • Material: High-Strength Nylon
  • Mounting: Integrated 1/4-20 UNC Metal Nut (Suspension Mount)
  • Compatibility: 1/4-20 Threaded Rod
• Available Sizes: 20mm, 25mm, 32mm, 40mm, 50mm, 63mm (110mm+ typically use distinct heavy-duty clamps)
• Temperature Range: -4°F to +176°F (-20°C to +80°C)

Installation Tip: Support Spacing

To prevent pipe sagging, we recommend the following maximum spacing between hangers:

• 20mm – 25mm Pipe: Every 5 to 6 feet (1.5m – 1.8m)
• 32mm – 40mm Pipe: Every 6 to 8 feet (1.8m – 2.4m)
• 50mm – 63mm Pipe: Every 8 to 10 feet (2.4m – 3.0m)

Choose the right hanger for the job. Use Plastic for walls and Nylon with 1/4-20 nuts for seamless ceiling suspension.
